Flexion Advanced SensorUnit

Are you striving for an even more effective dental treatment? Would you like to offer your patients the best possible treatment?

The Flexion Advanced SenorUnit dental microscope impresses with its outstanding optics and a wide range of features. The well thought-out ergonomics ensure an upright treatment position and a relaxed posture. Various imaging ports for full-frame, APS-C cameras and smartphones are available for contemporary documentation. By activating the integrated SensorUnit with a hand gesture photo or video recordings can be started easily.

Advanced Microscopy

With its wide range of services, the Flexion Advanced SensorUnit is the dental microscope for modern practices.

Optics – For superior results

Advanced Optical Design

CJ-Optik Flexion microscopes are highly acclaimed for their superior image quality. It is only through CJ-Optik working closely with the optics designer that the optimal specifications can be developed. With the use of apochromatic optics in the Flexion Advanced microscope dentists can detect the finest colour and structure details.

Perfect Illumination

The fanless LED spot lighting provides a well-lit treatment area with high colour rendering index and 5.400 K. Future-proof with 65,000 hours lifespan. The spot diaphragm always shows the assistant the exact treatment site and prevents light from falling into the patient‘s eyes.

VarioFocus

Choose from either the VarioFocus2 with 200 – 350 mm range or the VarioFocus3 with 210 – 470 mm working distance and plan-apochromatic correct built-in optics. The superior light transmission provides optimal viewing and documentation results. Removable protection cover lens with Hydrophobic Coating (HPC). Index Matching Coating for highest transmission and low reflection rates.

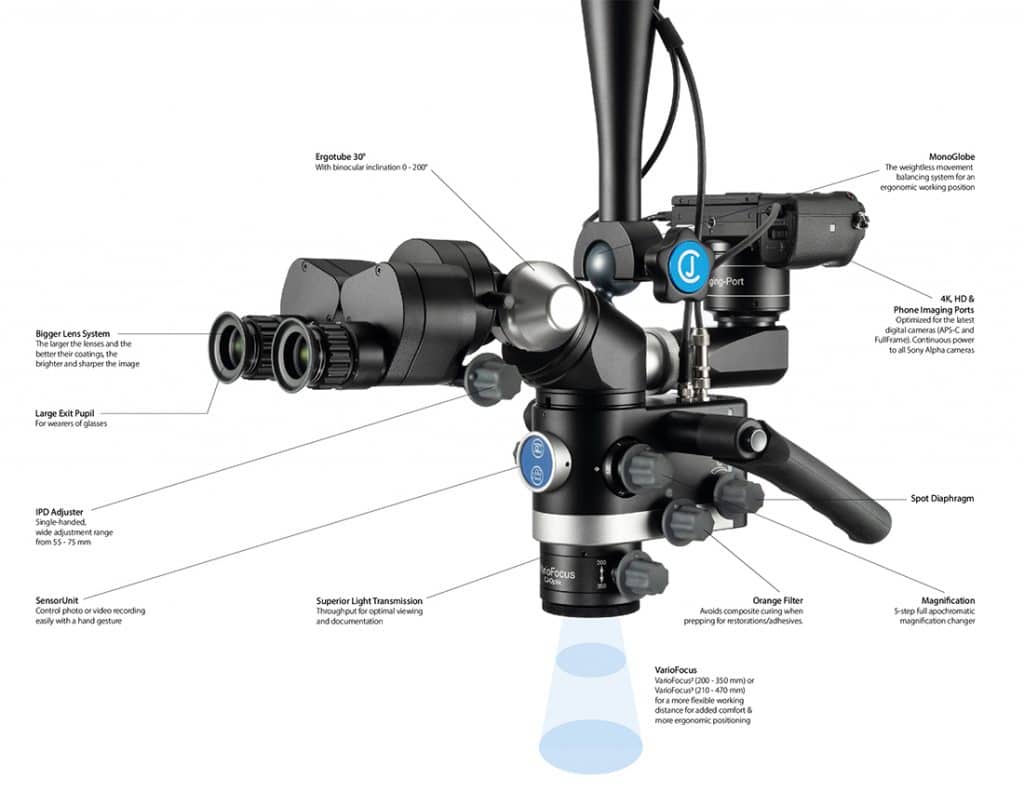

Details make the Difference

Just to name some of the many remarkable features that makes working with the Flexion Advanced microscopes
so comfortable:

Ergonomics – For stress-free treatments

Flexion

Anyone who has ever worked with one of our microscopes knows why we called them Flexion. We consider the Flexion as a flexible extension of the dentist’s eyes. The dentist‘s upright treatment position ensures a relaxed posture and thus prevents neck and back problems in the long term.

MonoGlobe

The uniquely designed MonoGlobe is the weightless movement balancing system. The coupling system allows fluid and smooth repositioning at all angles without having to adjust the tension.

Quality at the Touch of a Button

Ergonomically placed controls ensure that all functions are immediately at your fingertips for all inter-procedure changes.

Cable Management

HDMI, USB, camera AC/DC power and 24V monitor power supply are integrated within the arm for a cleaner cable management. USB, HDMI, Medical monitor power integrated for a better workflow. No fragile fibre-optic cables that break or tangle.

Awarded for Design,
Designed for Dentists

Documentation

Whether you prefer to document the treatment in 4K, in HD or with a smartphone: Focal lengths
and optics have been uniquely designed for an ideal match to today’s latest digital cameras.

4K-Imaging-Port

For Sony, Nikon & Canon FullFrame cameras

HD-Imaging-Port

For Sony, Nikon & Canon APS-C cameras

Phone-Imaging-Port

Adapter compatible with all smartphones (up to 6,5”)
MicVision App

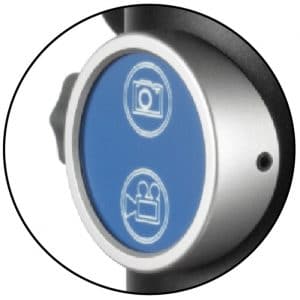

SensorUnit

For Sony cameras

(FullFrame & APS-C)

Full Connectivity

Swivel Arm Advanced with HDMI, 24V, USB,

Direct power supply for the camera from the microscope

CJ-Optik

recommends

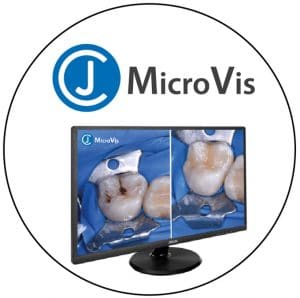

MicroVis – Our documentation software saves time for the important things

With the MicroVis software specially developed for the Flexion microscopes, the image and video files of the treatment are conveniently and securely placed in your patient‘s file. Thanks to its user-friendliness, MicroVis relieves your team and you save important time. MicroVis is optionally available and compatible with all common practice management systems.

Mounting Options

Flexible and customized

Flexion – The name says it all, even with the different mounting options. In addition to the dimensions shown here, CJ-Optik also offers tailor-made heights and lengths of all tripod parts in order to adapt the assembly to the premises in the best possible way. In addition, the parts can be interchanged (e.g. when changing from floor to ceiling mounting).

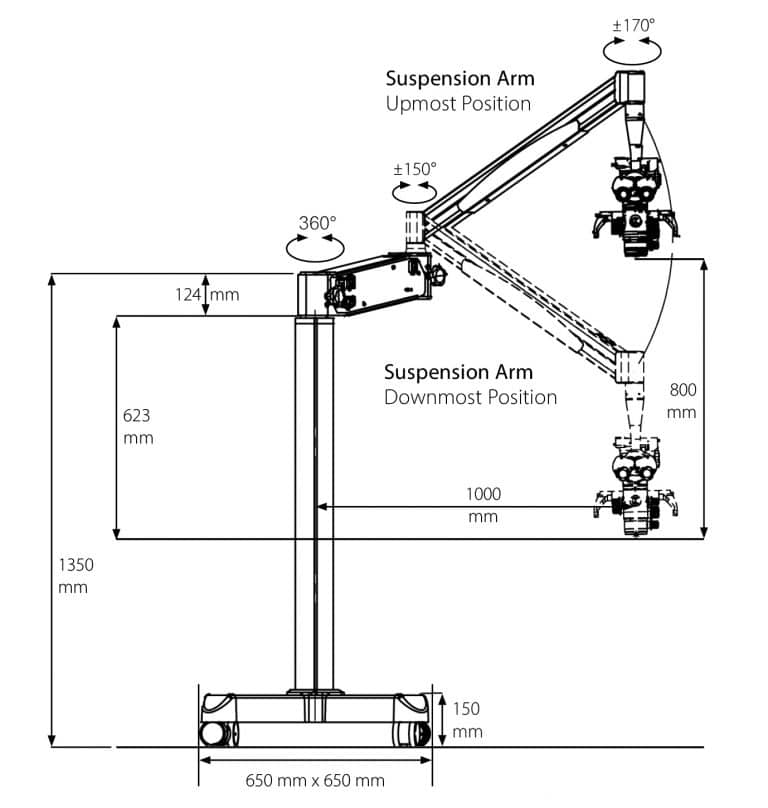

Mobile Stand

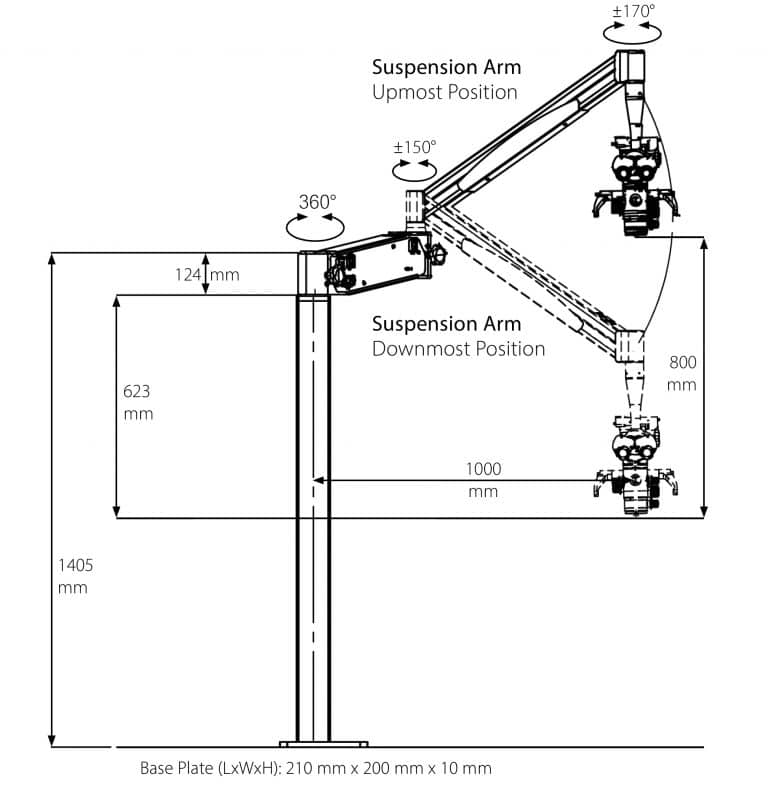

Floor Mount

Ideal for use in multiple rooms.

The space-saving alternative to the mobile stand.

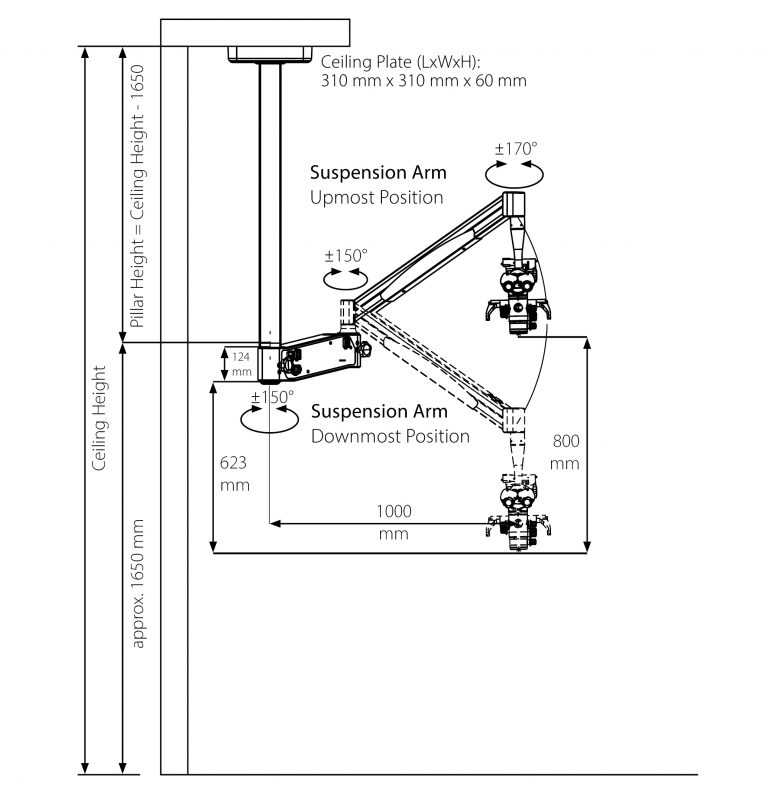

Ceiling Mount

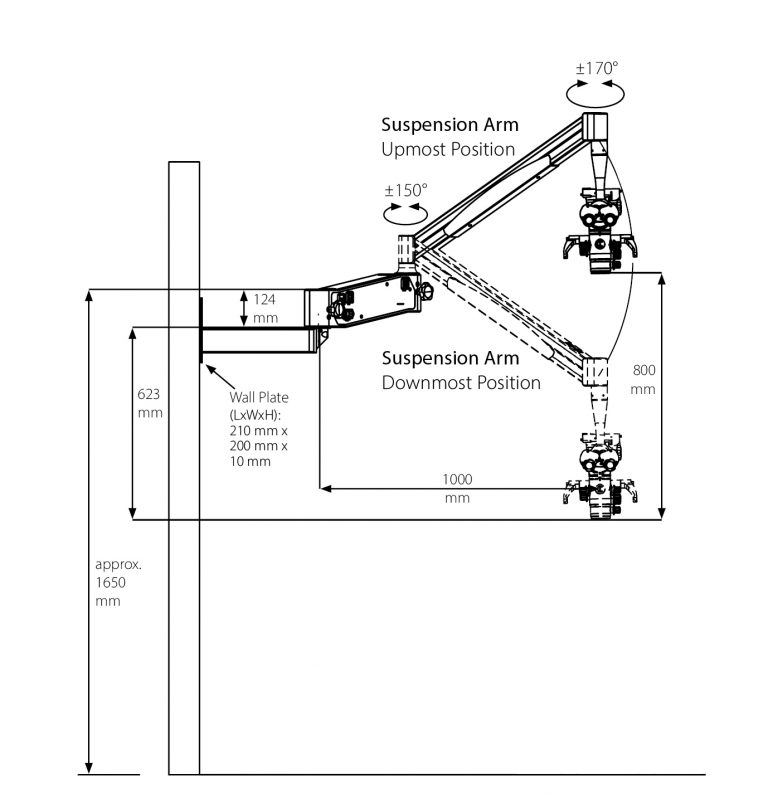

Wall Mount

Maintains ground clearance. Pillar height can be adjusted to any ceiling height.

The alternative to ceiling mounting.

We recommend a working position in which the suspension arm is at a right angle and the microscope head is at a distance of one meter from the vertical column (as shown above).

Technical Data

	Flexion Advanced SensorUnit
Magnification System	5-step apochromatic magnification changer / 0.4 – 2.5
Eyepieces	Widefield eyepieces WF 12.5 x
	Widefield eyepieces WF 12.5 x / Reticle *
Tube System	F = 170 mm apochromatic / 180° tiltable tube
Stereo Base	24 mm for enhanced 3D vision
Focus System	VarioFocus2 200 – 350 mm / Plan-APO / glass protection *
	VarioFocus3 210 – 470 mm / Plan-APO / glass protection *
	VarioFocus with hydrophobic glass protection *
Illumination System	Fanless high power LED 5.400 K / 65.000 h life time
	2° with stepless spot diaphragm system, up to 100.000 Lux
Filter System	Swing in green filter
	Swing in orange filter
Movement	MonoGlobe, 355° Axis control
Handles	Ergonomic handles, 360° adjustable
Asepsis	1 x Asepsis set for the handles and knobs (sterilizable)
Documentation	Integrated beam splitter 50:50
	4K-Imaging-Port / FullFrame *
	HD-Imaging-Port / APS-C *
	Phone-Imaging-Port / Smartphones *
	SensorUnit controls for photo / video
	MicVision App (iOS) *
	MicroVis Software *
Power	Power adapter for all Sony Alpha cameras, smartphones
Stands	Mobile stand , wall mount , ceiling mount , floor mount , dental units *
	* optional
